5.5mm x 32mm hex head self-drilling screw in A2 stainless steel to DIN 7504-K. The drill-point tip bores and taps into light-gauge steel in a single operation - no pre-drilling or tapping required for thin sheet and steel cladding. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.

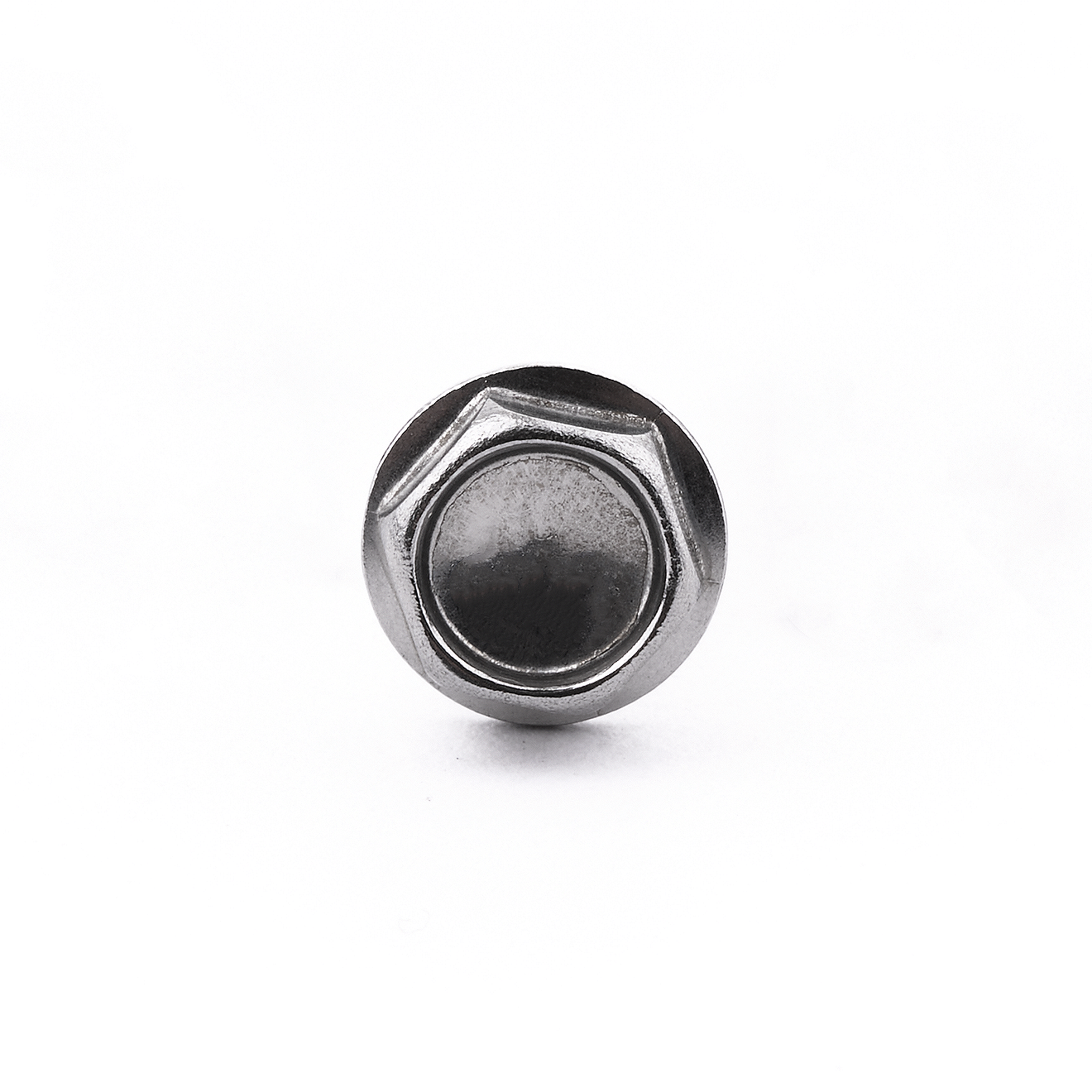

  • 5.5mm x 32mm hex self-drilling screw A2 stainless DIN 7504

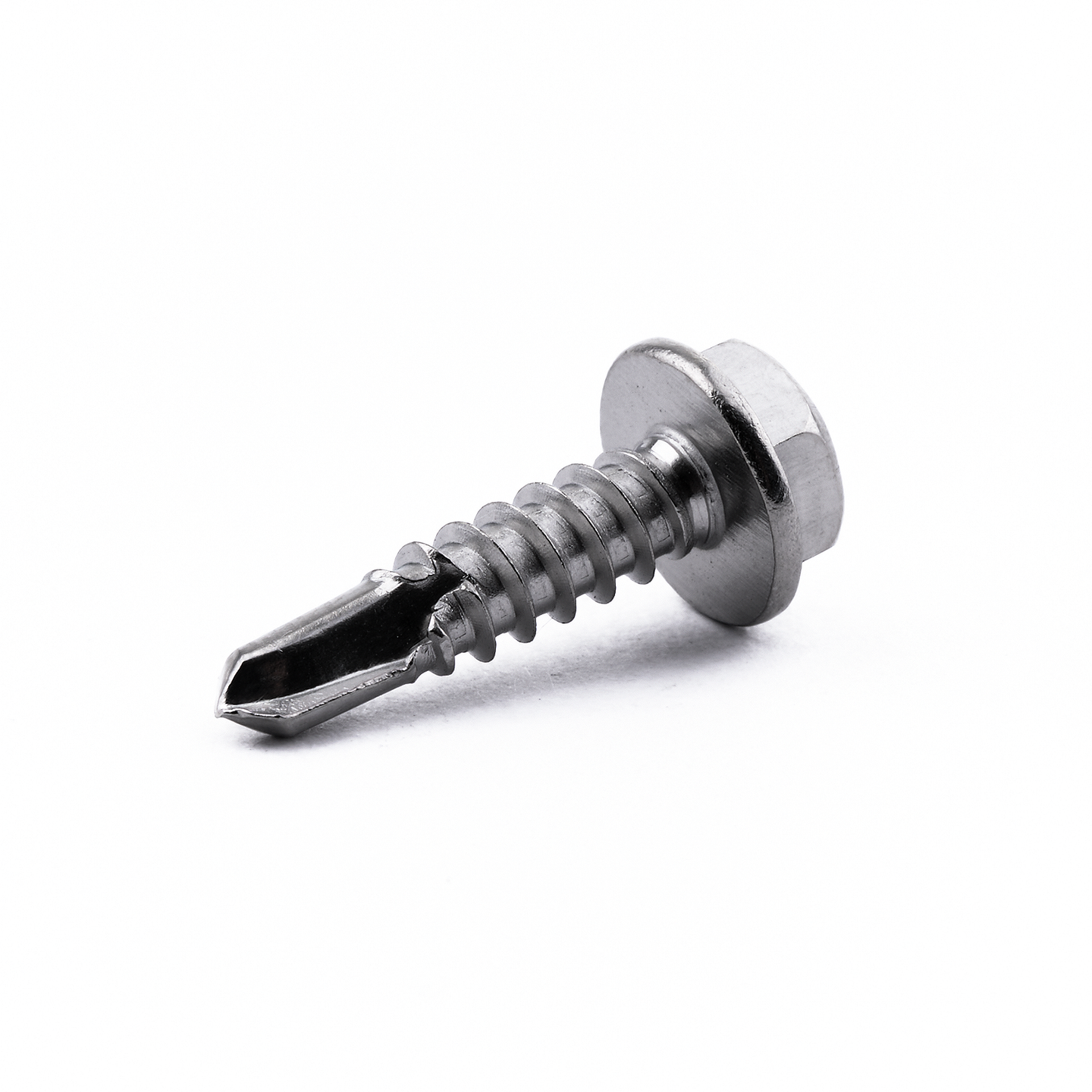

  • DIN 7504 self-drilling screw 5.5mm x 32mm A2 stainless steel, side profile
  • Simfix product label - 7504KA255032PK50-SIM
  • Simfix product label - 7504KA255032PK250-SIM
5.5mm x 32mm hex self-drilling screw A2 stainless DIN 7504
DIN 7504 self-drilling screw 5.5mm x 32mm A2 stainless steel, side profile
Simfix product label - 7504KA255032PK50-SIM
Simfix product label - 7504KA255032PK250-SIM

Simfix

Hex Head Self Driller DIN 7504-K A2 Stainless Steel (5.5 X 32)

SKU 7504KA255032PK50-SIM
£8.48
Pack size:
Free next-day delivery over £50 Next-day delivery is free when your order is over £50, or £3.95 below that threshold.
Same-day shipping before 4pm Orders placed before 4pm Monday-Friday are typically dispatched the same working day.
Secure SSL checkout Checkout is encrypted and supports secure Shopify payment options.
Speedy refunds If something is not right, contact us within 30 days of delivery and we will sort a refund or replacement quickly.

5.5mm x 32mm hex head self-drilling screw in A2 stainless steel to DIN 7504-K. The drill-point tip bores and taps into light-gauge steel in a single operation - no pre-drilling or tapping required for thin sheet and steel cladding. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.
£8.48
5.5mm x 32mm hex self-drilling screw A2 stainless DIN 7504 DIN 7504 self-drilling screw 5.5mm x 32mm A2 stainless steel, side profile Simfix product label - 7504KA255032PK50-SIM Simfix product label - 7504KA255032PK250-SIM
5.5mm x 32mm hex self-drilling screw A2 stainless DIN 7504 DIN 7504 self-drilling screw 5.5mm x 32mm A2 stainless steel, side profile Simfix product label - 7504KA255032PK50-SIM Simfix product label - 7504KA255032PK250-SIM

This 5.5mm x 32mm hex head self-drilling screw is manufactured to DIN 7504-K in A2 stainless steel (304 grade). DIN 7504-K specifies a self-drilling, self-tapping screw: the drill-point tip bores through light-gauge steel sheet and simultaneously taps a thread in a single driving operation, eliminating the separate pre-drilling and pre-tapping steps required with standard screws. This significantly reduces installation time in steel cladding, roofline purlins, and light structural steelwork. The hex washer head sits above the surface with a built-in seating face, suited to standard sockets, magnetic nut-runners, and impact drivers for high-speed power-tool installation. The drill point is rated for specific material thicknesses - use the correct screw length for the combined substrate thickness.

Typical applications

  • Light-gauge steel cladding, purlins, and roofline fixings
  • Metal-framed partitioning, mezzanine floors, and steelwork connections
  • Sheet metal enclosures and fabrication where pre-drilling is not practical
  • Indoor and sheltered outdoor structural metalwork

Available in packs of 50 to 250, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns.

Fastener styleHex head self-drilling screw
StandardDIN 7504-K
MaterialA2 stainless steel (304)
Property classA2
Thread sizeM5.5
Length32 mm
Head typeHex
Drive typeExternal hex (spanner)
Surface finishPlain (no plating)
HS commodity code7318141090
Recommended useIndoor

RoHS and REACH compliant.
