8 X 8 Socket Shoulder Screw 10 Pack ISO 7379 A2 Stainless Steel
- RRP
- £14.06

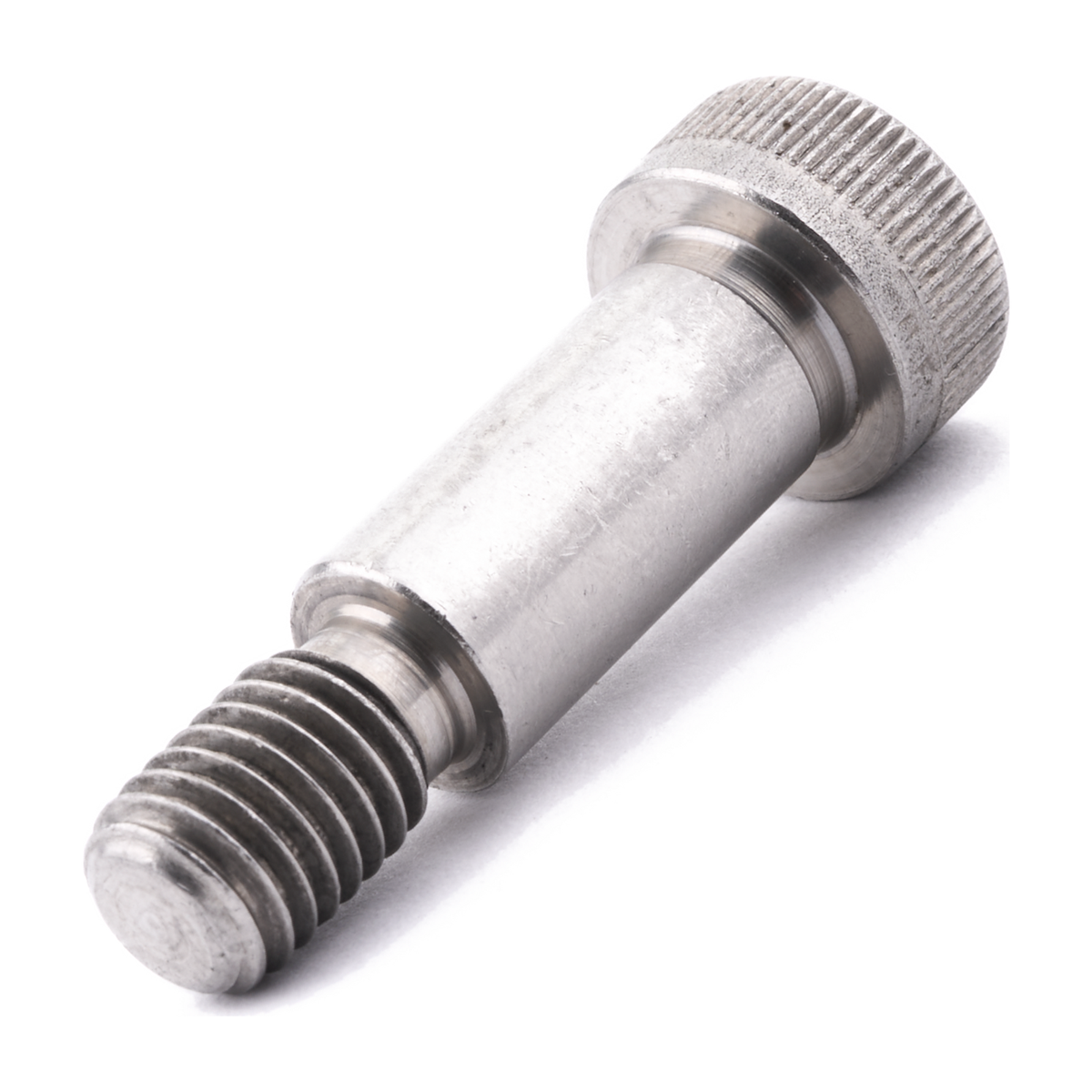

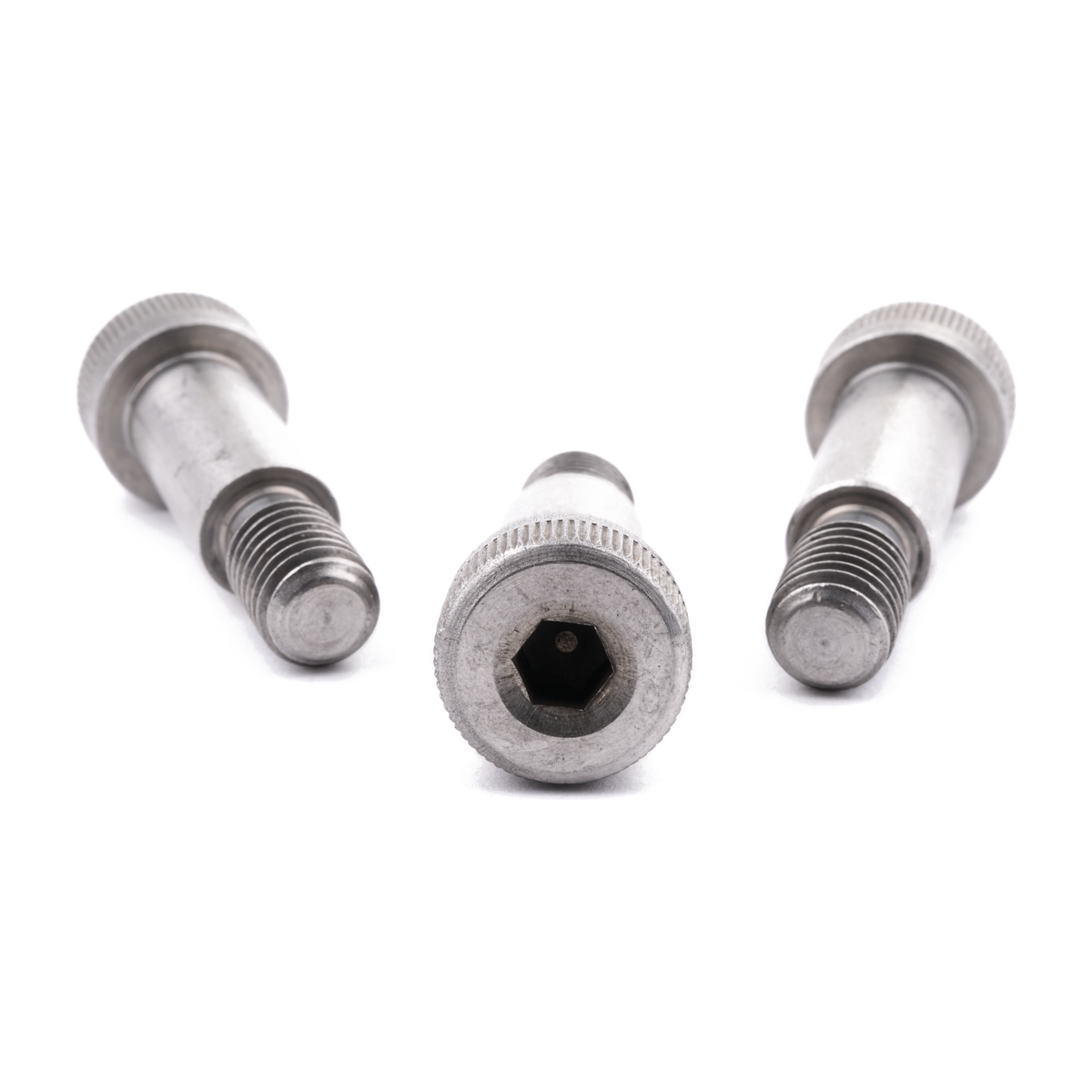

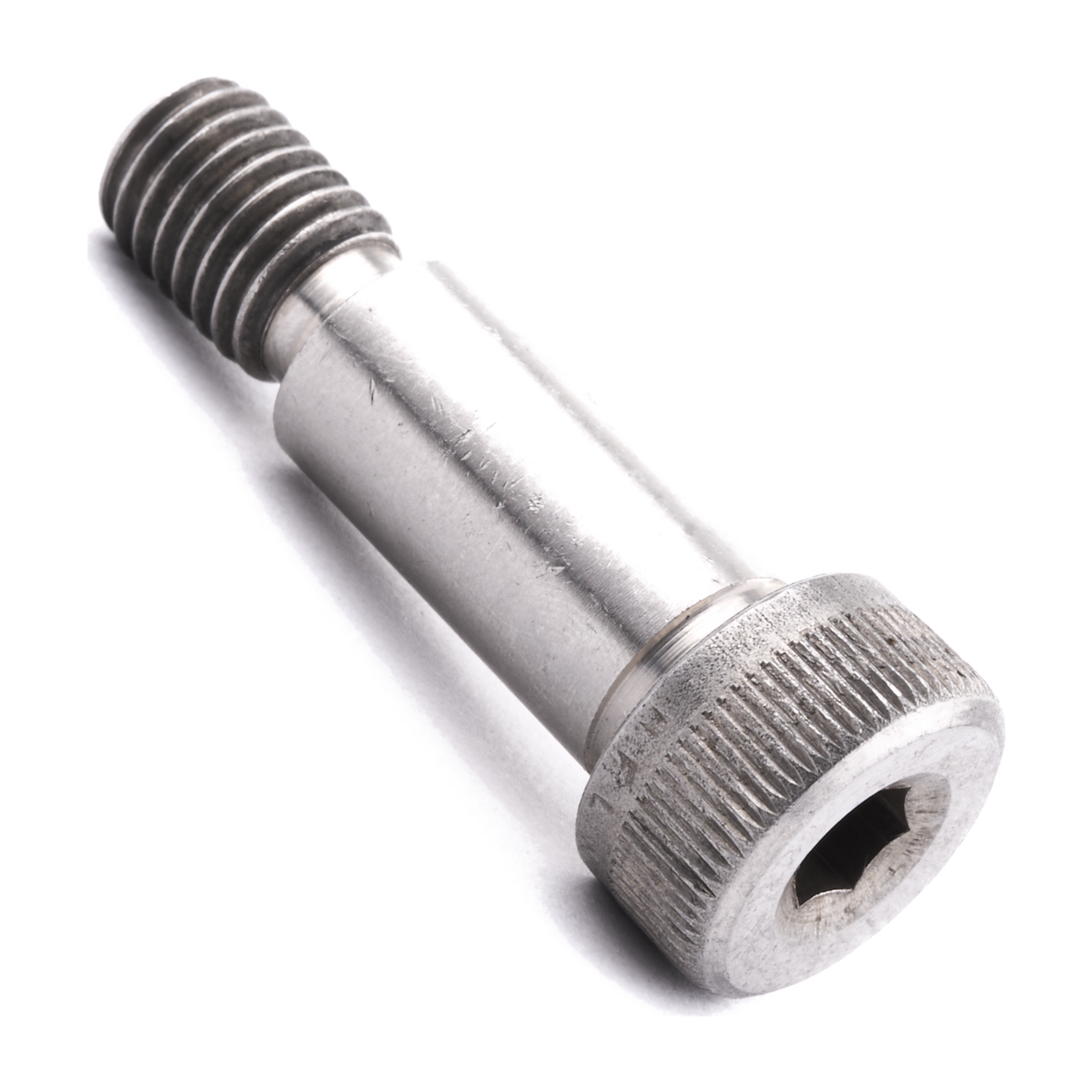

This 8 x 8mm socket shoulder screw is manufactured to ISO 7379 in A2 stainless steel (304 grade). ISO 7379 specifies a screw with a precision ground cylindrical shoulder between the head and a smaller diameter thread, for use as a pivot or guide. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The ground shoulder runs to a close diameter tolerance and acts as a bearing surface or axle, letting parts rotate or slide on it while the smaller thread anchors the screw.
Typical applications
- Pivot points for levers, links, and rotating parts
- Guides and stops in tooling and jigs
- Die sets and stripper plate assemblies
- Precision machine build
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
- RRP
- £14.06
This 8 x 8mm socket shoulder screw is manufactured to ISO 7379 in A2 stainless steel (304 grade). ISO 7379 specifies a screw with a precision ground cylindrical shoulder between the head and a smaller diameter thread, for use as a pivot or guide. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The ground shoulder runs to a close diameter tolerance and acts as a bearing surface or axle, letting parts rotate or slide on it while the smaller thread anchors the screw.
Typical applications
- Pivot points for levers, links, and rotating parts
- Guides and stops in tooling and jigs
- Die sets and stripper plate assemblies
- Precision machine build
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
-
files/simfix-2SSH12010025_1.png
-
files/simfix-2SSH12010025_2.png
-
files/simfix-2SSH12010025_3.png
-
files/simfix-label-7379A208008-D.png
-
files/simfix-label-7379A208008-T.png
This 8 x 8mm socket shoulder screw is manufactured to ISO 7379 in A2 stainless steel (304 grade). ISO 7379 specifies a screw with a precision ground cylindrical shoulder between the head and a smaller diameter thread, for use as a pivot or guide. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The ground shoulder runs to a close diameter tolerance and acts as a bearing surface or axle, letting parts rotate or slide on it while the smaller thread anchors the screw.
Typical applications
- Pivot points for levers, links, and rotating parts
- Guides and stops in tooling and jigs
- Die sets and stripper plate assemblies
- Precision machine build
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
*Photos, diagrams and other images are for illustration only and may not show the exact item supplied. Simfix reserves the right to alter or replace any photo, diagram or image at any time at its sole discretion.
**Orders that cannot be split will be rounded up to the next full pack or box quantity.
Simfix reserves the right to change quantities, stock levels and prices at any time. We accept no liability for the accuracy of dimensional data, DIN/ISO references, technical data, customs tariff codes or EAN barcodes.
| Fastener style | Socket shoulder screw with hex socket drive |
|---|---|
| Standard | ISO 7379 |
| Material | A2 stainless steel (304) |
| Property class | A2-070 |
| Thread size | M6 |
| Thread pitch | 1.0 mm (coarse) |
| Length | 8 mm |
| Drive type | Hex socket |
| Surface finish | Plain (no plating) |
| Recommended use | Workshop |
RoHS and REACH compliant.
How do I choose between A2 and A4 stainless steel?
A2 (304) stainless steel suits most indoor, outdoor and workshop jobs. Choose A4 (316) marine grade for coastal, marine, poolside or other chloride-rich environments.
How do I make sure I order the right size?
Check the size in the product title and the standard, material and dimensions in the Product Specification tab. In M8 x 30, M8 is the thread diameter and 30 is the length in millimetres. See our size guide if you need more help.
When will my order arrive?
Orders placed before 3:30pm Monday-Friday are typically dispatched the same working day and every order is tracked. Next-day delivery is free over £50, or £5.50 below that threshold. Full options are shown at checkout.
What if I order the wrong item?
Email contact@simfix.com within 30 days of delivery with your order number. We will help arrange a refund or replacement. See our refunds information for the full process.
Is checkout secure?
Yes. Checkout is protected by SSL encryption and payments are processed through Shopify's secure checkout and supported payment providers. Simfix does not store your full card details.
-
