Simfix
M10 X 50 Hexagon Socket Button 10 Pack ISO 7380-1 Full Thread A2 Stainless Steel
- RRP
- £3.63

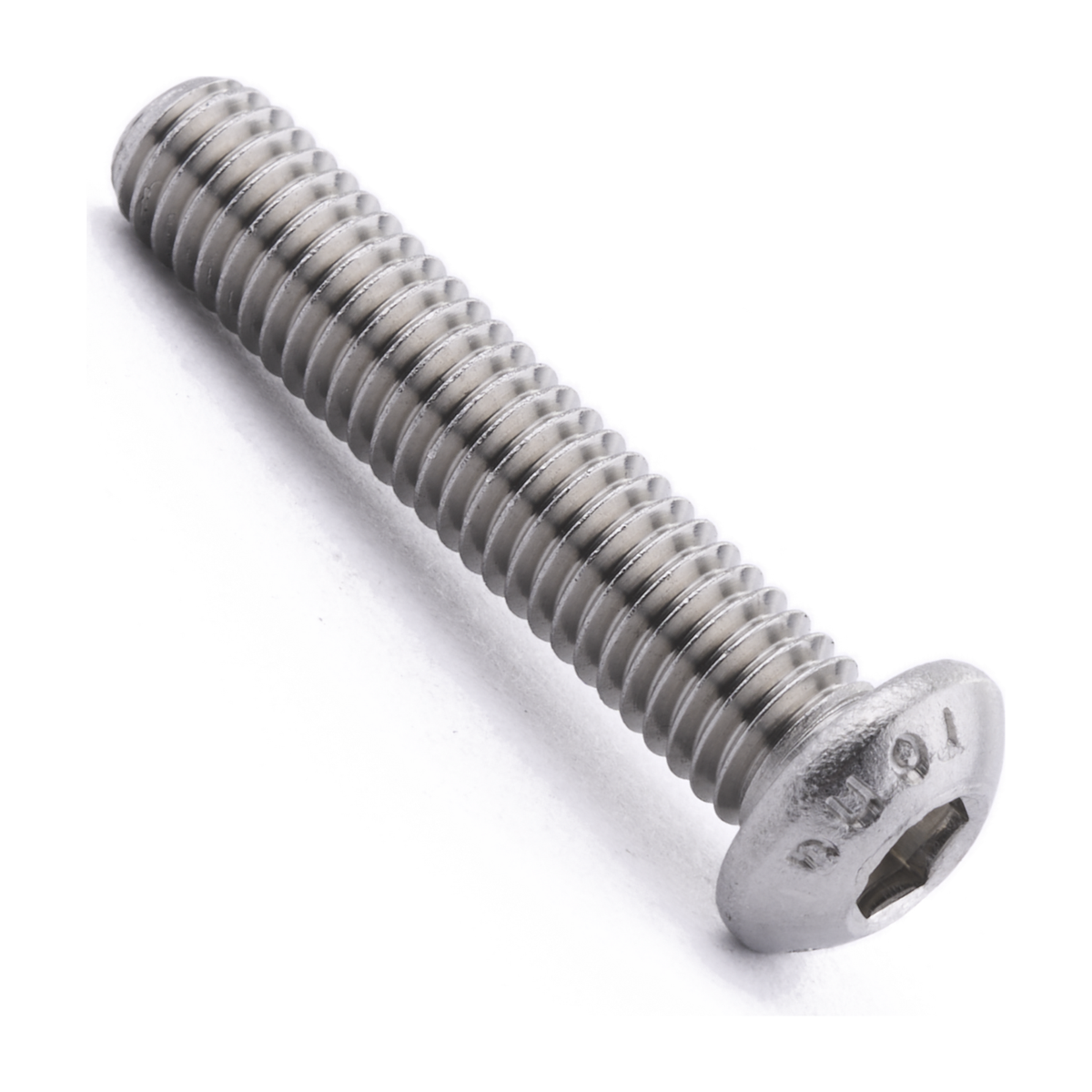

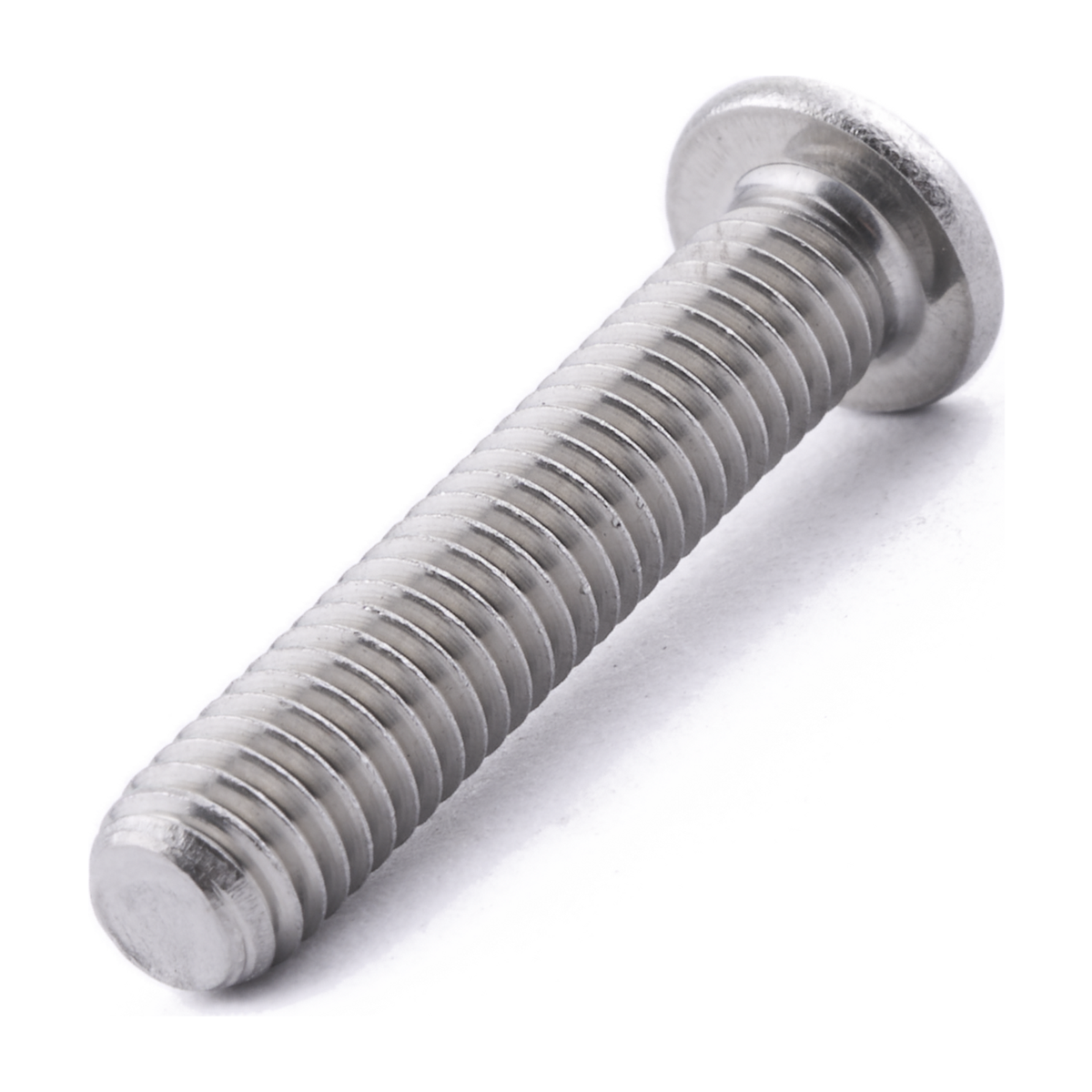

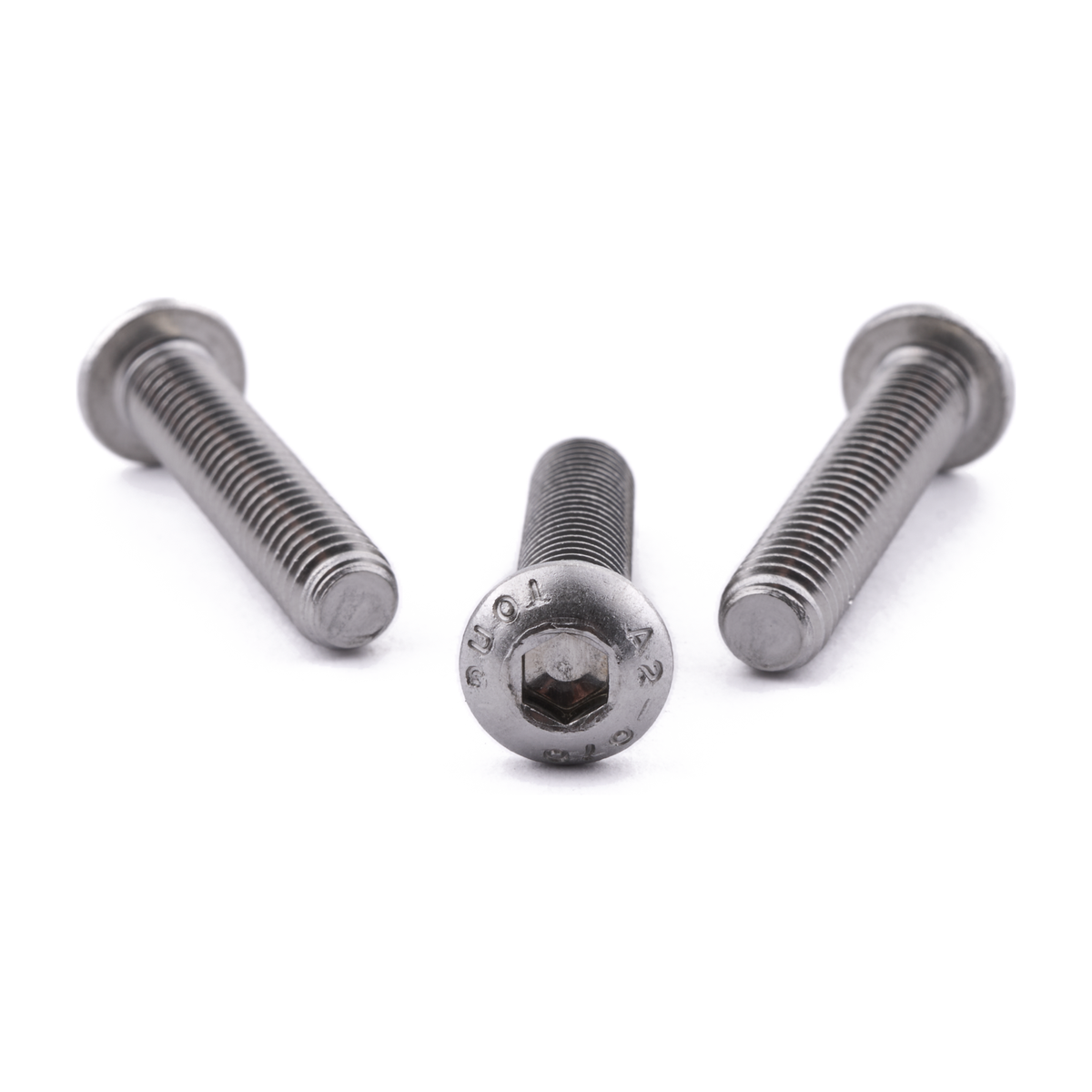

This M10 x 50mm socket button head screw is manufactured to ISO 7380-1 in A2 stainless steel (304 grade). ISO 7380-1 specifies a low domed head driven by an internal hexagon socket, giving a rounded, finished appearance with a low profile. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The shallow domed head presents a smooth surface with no sharp edge, covering a wider bearing area than a cap screw while standing well clear of moving parts.
Typical applications
- Visible fixings where appearance and a smooth finish matter
- Guards and covers where a low, rounded head reduces snag risk
- Furniture, displays, and shopfitting
- Light assembly where a cap screw head would look heavy
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
- RRP
- £3.63
This M10 x 50mm socket button head screw is manufactured to ISO 7380-1 in A2 stainless steel (304 grade). ISO 7380-1 specifies a low domed head driven by an internal hexagon socket, giving a rounded, finished appearance with a low profile. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The shallow domed head presents a smooth surface with no sharp edge, covering a wider bearing area than a cap screw while standing well clear of moving parts.
Typical applications
- Visible fixings where appearance and a smooth finish matter
- Guards and covers where a low, rounded head reduces snag risk
- Furniture, displays, and shopfitting
- Light assembly where a cap screw head would look heavy
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
-
files/simfix-2SB6030_1.png
-
files/simfix-2SB6030_2.png
-
files/simfix-2SB6030_3.png
-
files/simfix-label-7380A210050-D.png
-
files/simfix-label-7380A210050-T.png
Complete the fixing
Matching nuts and washers in the same size, grade and thread as this screw.
M10 X 50 Hexagon Socket Button ISO 7380-1 Full Thread A2 Stainless Steel
Total for selected
This M10 x 50mm socket button head screw is manufactured to ISO 7380-1 in A2 stainless steel (304 grade). ISO 7380-1 specifies a low domed head driven by an internal hexagon socket, giving a rounded, finished appearance with a low profile. Property class A2-070 indicates a minimum tensile strength of 700 MPa - stronger than standard A2-50 and suited to structural fixings where higher clamping force is needed. The shallow domed head presents a smooth surface with no sharp edge, covering a wider bearing area than a cap screw while standing well clear of moving parts.
Typical applications
- Visible fixings where appearance and a smooth finish matter
- Guards and covers where a low, rounded head reduces snag risk
- Furniture, displays, and shopfitting
- Light assembly where a cap screw head would look heavy
Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns. For coastal, marine, or chloride-rich environments, Simfix A4 (316 grade) equivalents are available.
*Photos, diagrams and other images are for illustration only and may not show the exact item supplied. Simfix reserves the right to alter or replace any photo, diagram or image at any time at its sole discretion.
**Orders that cannot be split will be rounded up to the next full pack or box quantity.
Simfix reserves the right to change quantities, stock levels and prices at any time. We accept no liability for the accuracy of dimensional data, DIN/ISO references, technical data, customs tariff codes or EAN barcodes.
| Fastener style | Button head screw, fully threaded with hex socket drive |
|---|---|
| Standard | ISO 7380-1 |
| Material | A2 stainless steel (304) |
| Property class | A2-070 |
| Thread size | M10 |
| Thread pitch | 1.5 mm (coarse) |
| Length | 50 mm |
| Head type | Button Head |
| Drive type | Hex socket |
| Surface finish | Plain (no plating) |
| Recommended use | Workshop |
RoHS and REACH compliant.
How do I choose between A2 and A4 stainless steel?
A2 (304) stainless steel suits most indoor, outdoor and workshop jobs. Choose A4 (316) marine grade for coastal, marine, poolside or other chloride-rich environments.
How do I make sure I order the right size?
Check the size in the product title and the standard, material and dimensions in the Product Specification tab. In M8 x 30, M8 is the thread diameter and 30 is the length in millimetres. See our size guide if you need more help.
