M8 x 50mm part-threaded hex bolt in A2 stainless steel, manufactured to DIN 931 at property class A2-70. The plain shank reduces stress concentration at the thread run-out, suited to shear-loaded joints and structural through-bolting. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.
  • M8 x 50mm hex bolt A2 stainless DIN 931 - partial thread
  • DIN 931 hex bolt M8 x 50mm A2-70 A2 stainless steel, side profile
  • Hexagon head detail - M8 x 50mm A2 stainless bolt, partial thread DIN 931
  • Simfix product label - 931A20805070PK10-SIM
  • Simfix product label - 4014A20805070PK50-SIM

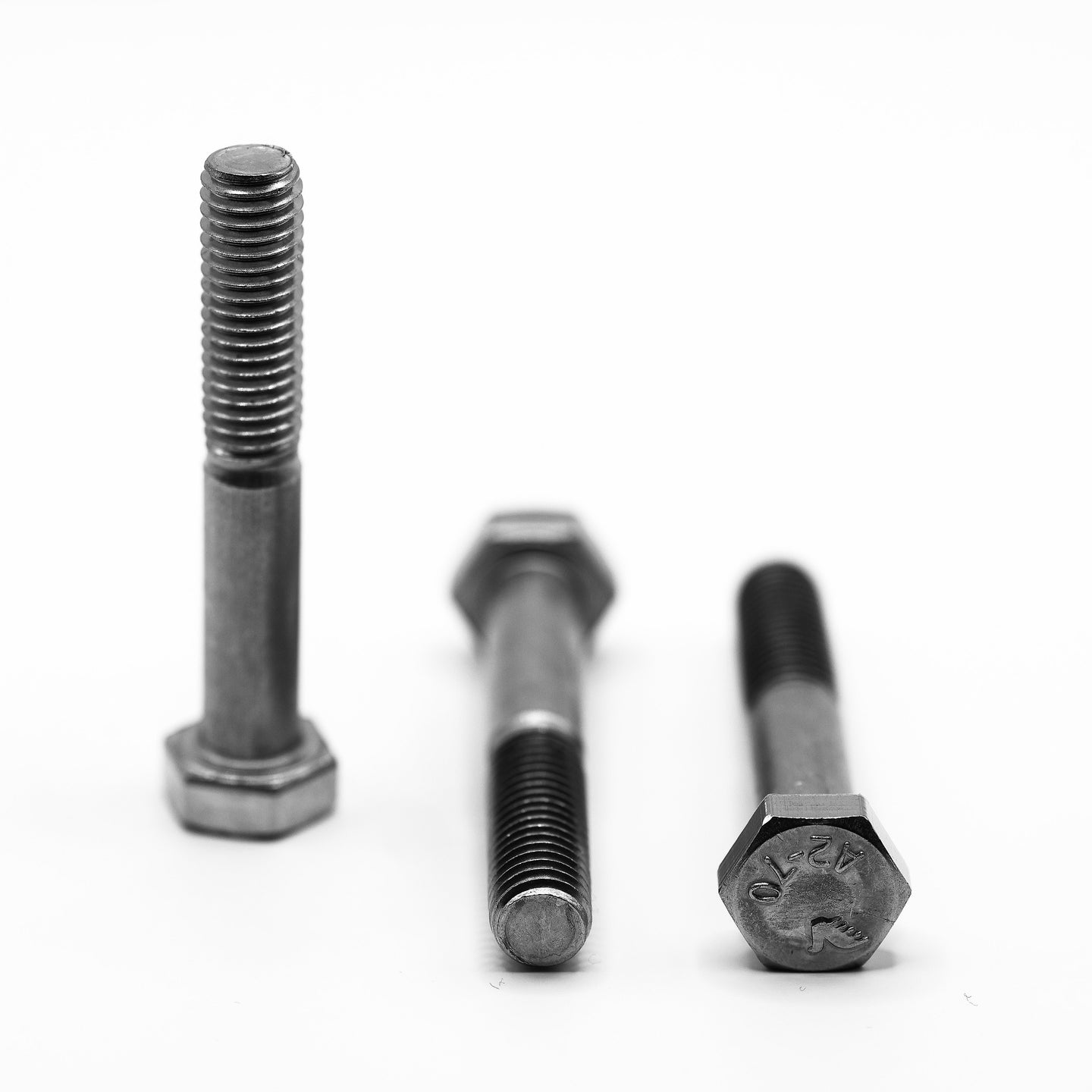

M8 x 50mm hex bolt A2 stainless DIN 931 - partial thread

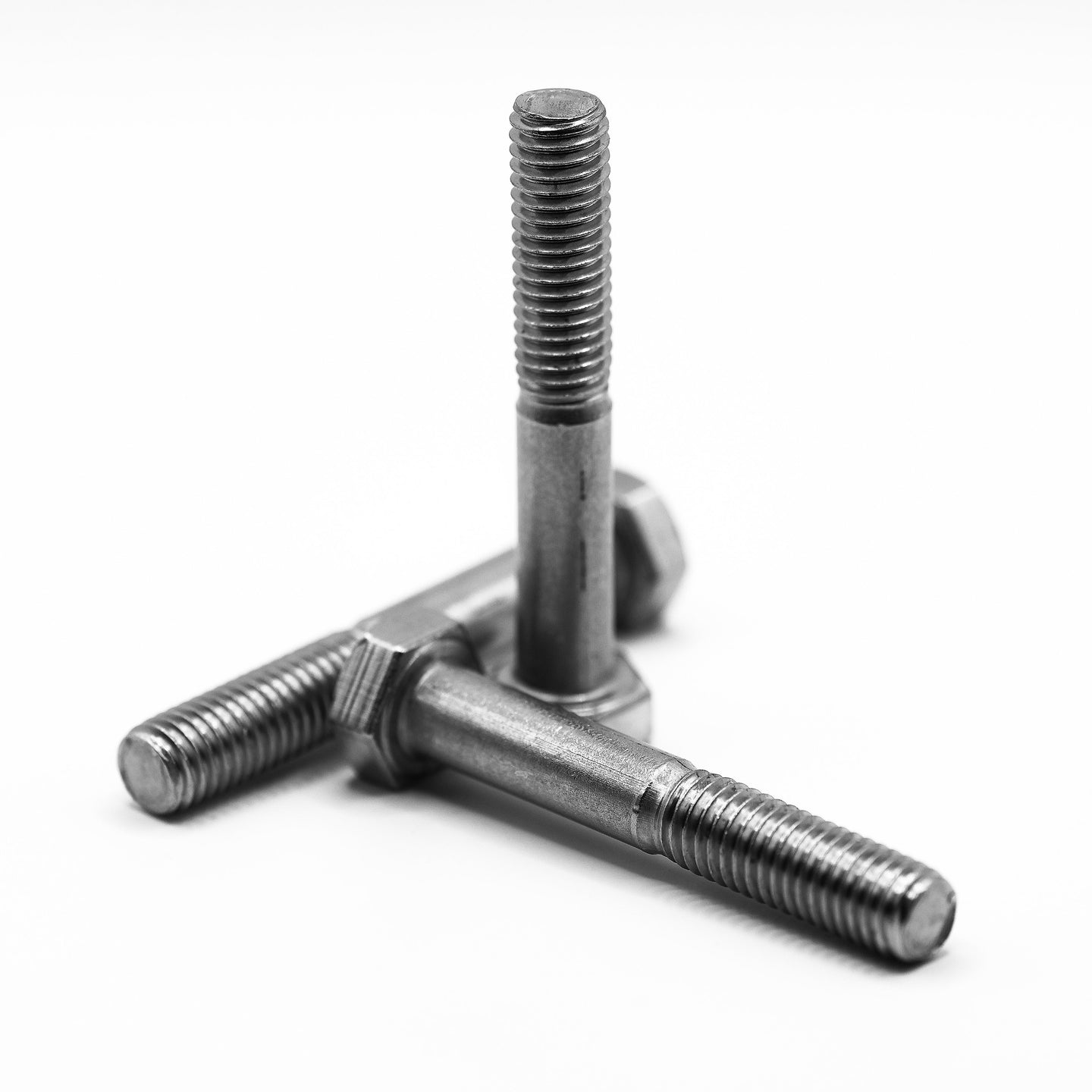

DIN 931 hex bolt M8 x 50mm A2-70 A2 stainless steel, side profile

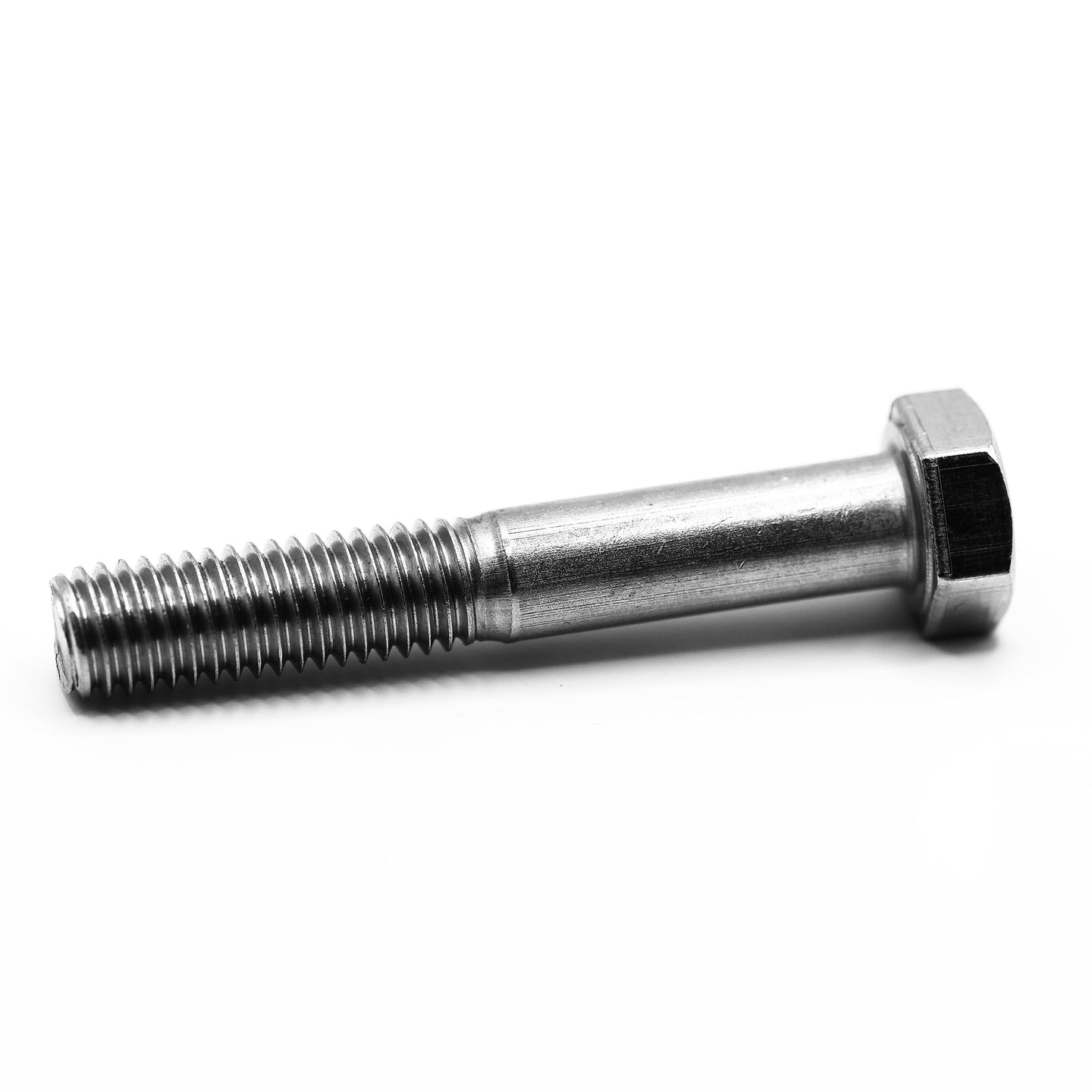

Hexagon head detail - M8 x 50mm A2 stainless bolt, partial thread DIN 931
Simfix product label - 931A20805070PK10-SIM
Simfix product label - 4014A20805070PK50-SIM

Simfix

Hexagon Head Bolt DIN 931 A2-70 A2 Stainless Steel (M8 X 50)

SKU 931A20805070PK10-SIM
£7.40
Pack size:
Free next-day delivery over £50 Next-day delivery is free when your order is over £50, or £3.95 below that threshold.
Same-day shipping before 4pm Orders placed before 4pm Monday-Friday are typically dispatched the same working day.
Secure SSL checkout Checkout is encrypted and supports secure Shopify payment options.
Speedy refunds If something is not right, contact us within 30 days of delivery and we will sort a refund or replacement quickly.

M8 x 50mm part-threaded hex bolt in A2 stainless steel, manufactured to DIN 931 at property class A2-70. The plain shank reduces stress concentration at the thread run-out, suited to shear-loaded joints and structural through-bolting. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.
£7.40
M8 x 50mm hex bolt A2 stainless DIN 931 - partial thread DIN 931 hex bolt M8 x 50mm A2-70 A2 stainless steel, side profile Hexagon head detail - M8 x 50mm A2 stainless bolt, partial thread DIN 931 Simfix product label - 931A20805070PK10-SIM Simfix product label - 4014A20805070PK50-SIM
M8 x 50mm hex bolt A2 stainless DIN 931 - partial thread DIN 931 hex bolt M8 x 50mm A2-70 A2 stainless steel, side profile Hexagon head detail - M8 x 50mm A2 stainless bolt, partial thread DIN 931 Simfix product label - 931A20805070PK10-SIM Simfix product label - 4014A20805070PK50-SIM

This M8 x 50mm hex bolt is manufactured to DIN 931 in A2 stainless steel (304 grade). DIN 931 specifies a part-threaded shank: the unthreaded plain section under the head spans the thickness of the joined parts, reducing stress concentration at the thread run-out and improving shear resistance compared with a fully threaded bolt. Property class A2-70 specifies a minimum tensile strength of 700 MPa - appropriate for structural connections and high-clamping-force applications. Pair with a matching M8 hex nut (DIN 934) or nyloc nut (DIN 985) for a complete through-bolted assembly.

Typical applications

  • Structural and heavy-duty mechanical connections requiring part-threaded shank
  • Steel-to-steel and steel-to-timber fixing in engineering assemblies
  • Guard rails, racking systems, and industrial fabrication
  • General mechanical and construction applications where A2 corrosion resistance is appropriate

Available in packs of 10 to 50, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns.

Fastener styleHexagon head bolt, part threaded
StandardDIN 931
MaterialA2 stainless steel (304)
Property classA2-70
Thread sizeM8
Thread pitch1.25 mm (coarse)
Length50 mm
Head typeHex
Drive typeExternal hex (spanner)
Surface finishPlain (no plating)
HS commodity code7318157590
Recommended useWorkshop

RoHS and REACH compliant.
