M4 x 16mm Phillips pan head machine screw in A2 stainless steel to DIN 7985. The pan head sits above the surface with a wide, flat bearing area - suited to panel work, electrical enclosures, and general light-engineering assemblies. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.

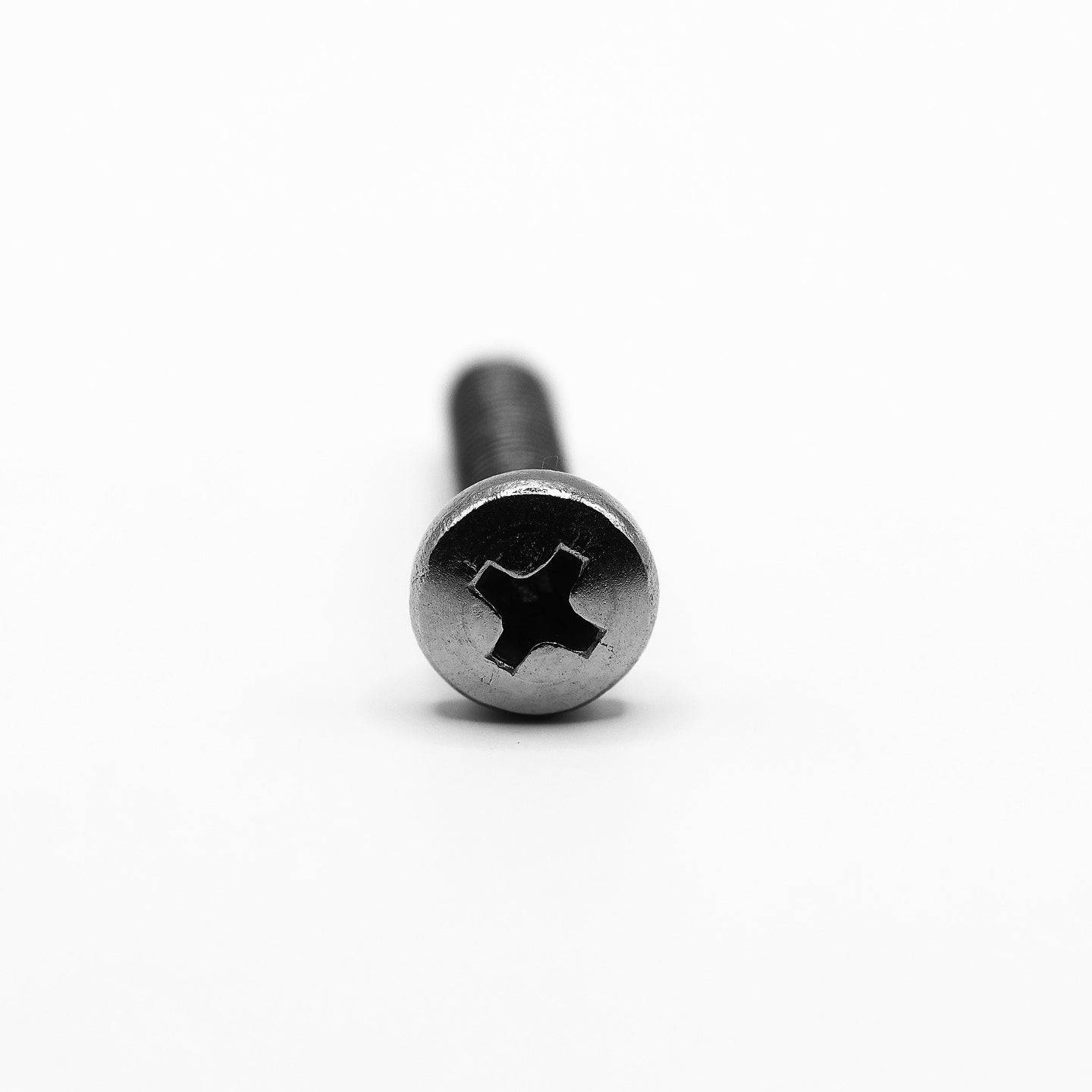

  • M4 x 16mm Phillips pan head machine screw A2 stainless DIN 7985

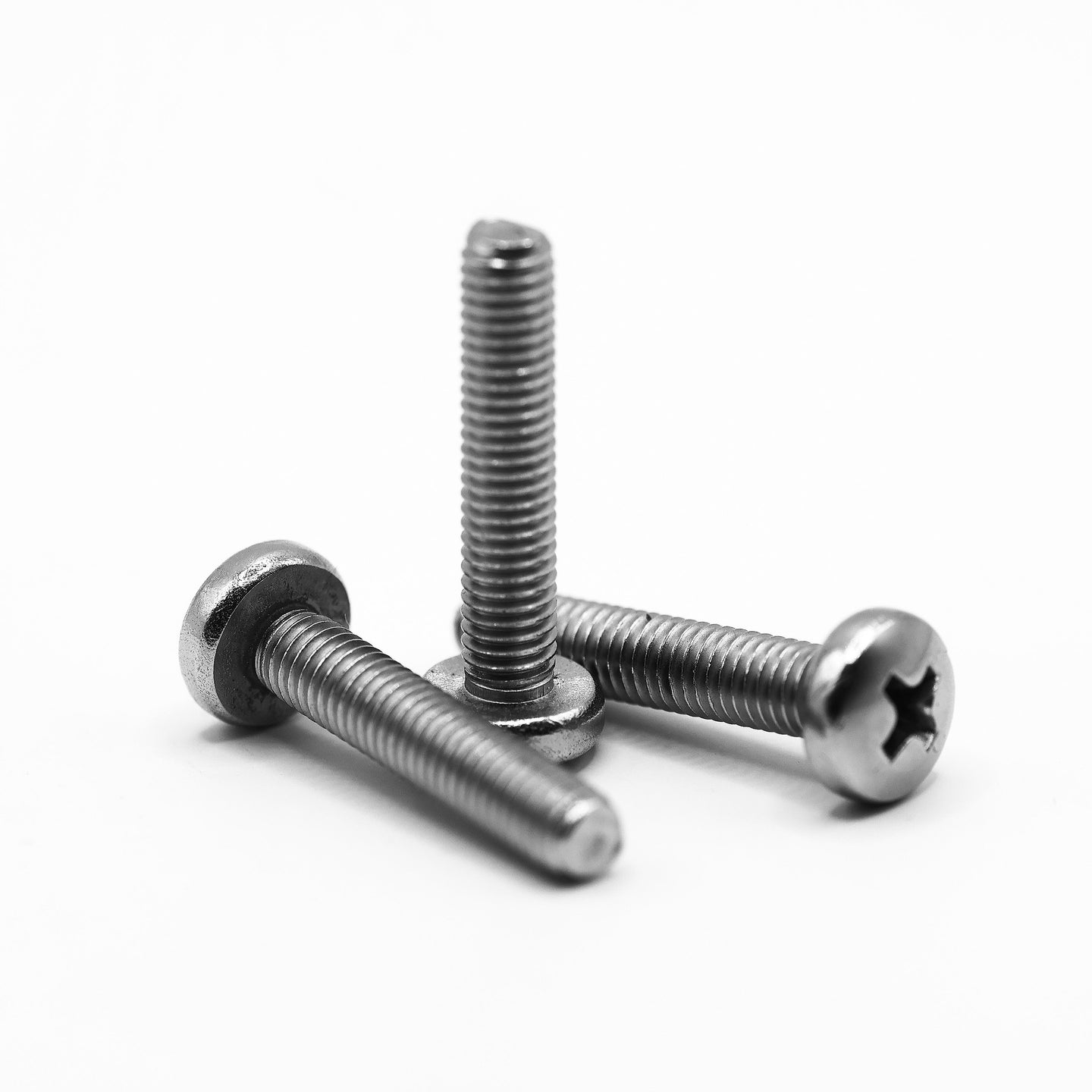

  • DIN 7985 Phillips pan machine screw M4 x 16mm A2 stainless steel, side profile

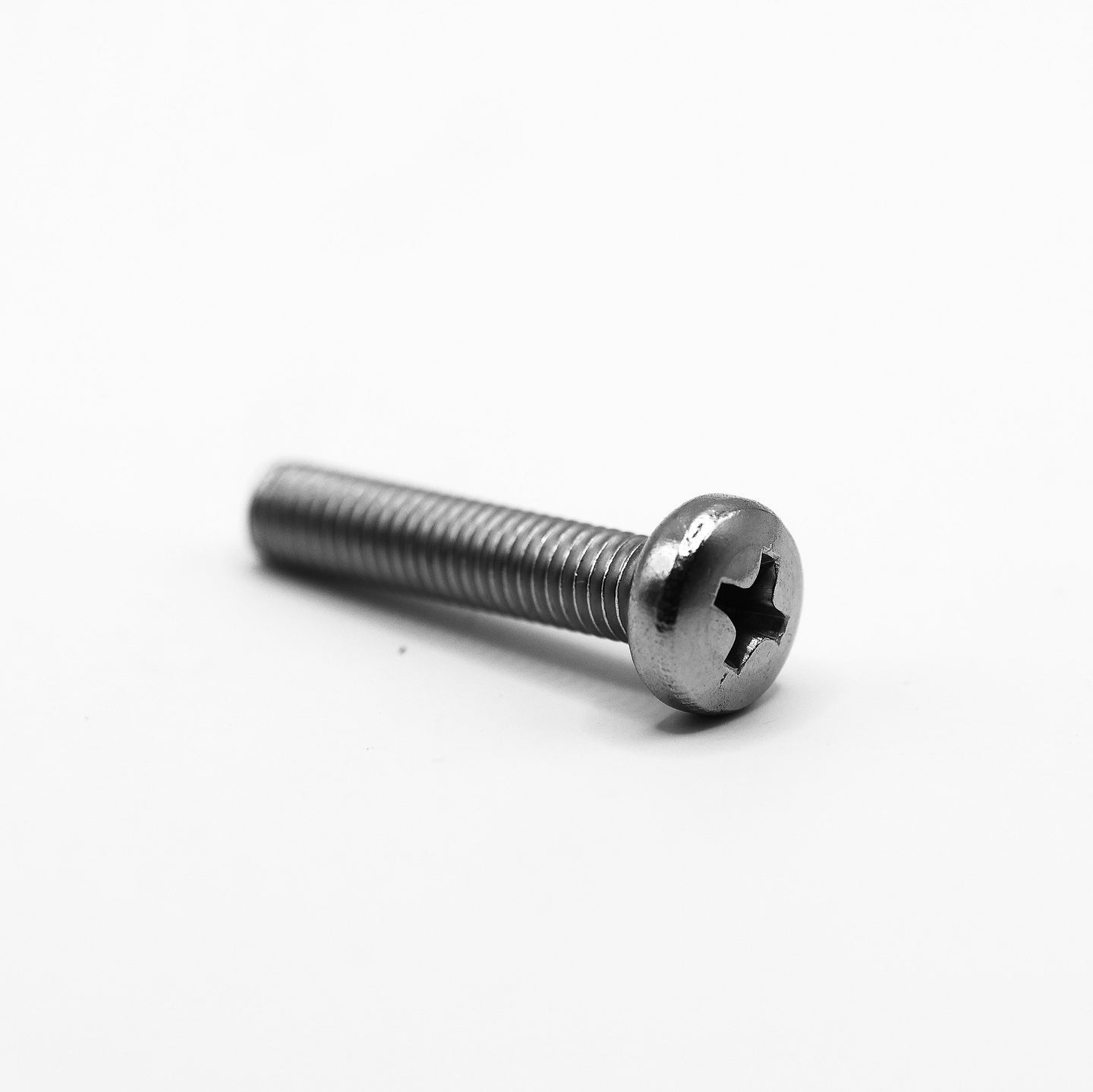

  • Phillips pan head detail - M4 x 16mm A2 stainless machine screw DIN 7985
  • Simfix product label - 7985A204016PK10-SIM
  • Simfix product label - 7985A204016PK100-SIM
M4 x 16mm Phillips pan head machine screw A2 stainless DIN 7985
DIN 7985 Phillips pan machine screw M4 x 16mm A2 stainless steel, side profile
Phillips pan head detail - M4 x 16mm A2 stainless machine screw DIN 7985
Simfix product label - 7985A204016PK10-SIM
Simfix product label - 7985A204016PK100-SIM

Simfix

Phil Pan Machine Screw DIN 7985 A2 Stainless Steel (M4 X 16)

SKU 7985A204016PK10-SIM
£2.52
Pack size:
Free next-day delivery over £50 Next-day delivery is free when your order is over £50, or £3.95 below that threshold.
Same-day shipping before 4pm Orders placed before 4pm Monday-Friday are typically dispatched the same working day.
Secure SSL checkout Checkout is encrypted and supports secure Shopify payment options.
Speedy refunds If something is not right, contact us within 30 days of delivery and we will sort a refund or replacement quickly.

M4 x 16mm Phillips pan head machine screw in A2 stainless steel to DIN 7985. The pan head sits above the surface with a wide, flat bearing area - suited to panel work, electrical enclosures, and general light-engineering assemblies. A2 (304 grade) gives good corrosion resistance for indoor and non-coastal outdoor use. Free next-day UK delivery on orders over £50.
£2.52
M4 x 16mm Phillips pan head machine screw A2 stainless DIN 7985 DIN 7985 Phillips pan machine screw M4 x 16mm A2 stainless steel, side profile Phillips pan head detail - M4 x 16mm A2 stainless machine screw DIN 7985 Simfix product label - 7985A204016PK10-SIM Simfix product label - 7985A204016PK100-SIM
M4 x 16mm Phillips pan head machine screw A2 stainless DIN 7985 DIN 7985 Phillips pan machine screw M4 x 16mm A2 stainless steel, side profile Phillips pan head detail - M4 x 16mm A2 stainless machine screw DIN 7985 Simfix product label - 7985A204016PK10-SIM Simfix product label - 7985A204016PK100-SIM

This M4 x 16mm Phillips pan head machine screw is manufactured to DIN 7985 in A2 stainless steel (304 grade). The pan head profile provides a wide, flat bearing face above the parent surface with a rounded dome - proportionally wider and lower-profile than a cheese head on the same thread size, giving a larger bearing footprint without adding significant head height. Phillips drive (PH0 at M3, PH1 at M4-M5, PH2 at M6 and above) is universally compatible with standard cross-head screwdrivers and a wide range of automatic assembly tooling. The practical choice where Pozidriv tooling is not available or where Phillips-head compatibility is a formal requirement of the assembled product or specification.

Typical applications

  • Light engineering assemblies, brackets, and panel mounting
  • Electrical enclosures, instrument panels, and cabinet work
  • Electronics, PCB standoffs, and small mechanical fittings
  • General indoor and sheltered outdoor assembly work

Available in packs of 10 to 100, with free next-day UK delivery on orders over £50 and 30-day no-quibble returns.

Fastener stylePan head machine screw with Phillips drive
StandardDIN 7985
MaterialA2 stainless steel (304)
Property classA2
Thread sizeM4
Thread pitch0.7 mm (coarse)
Length16 mm
Head typePan
Drive typePhillips (PH)
Surface finishPlain (no plating)
HS commodity code7318155290
Recommended useIndoor

RoHS and REACH compliant.
