Stainless Steel Screws in Aluminium: Galvanic Corrosion Guide
Stainless steel screws can be used in aluminium, and the pairing often performs well in dry indoor or ordinary sheltered conditions. Galvanic corrosion needs three things at the same time: dissimilar metals in electrical contact, a conductive liquid bridging them, and enough time for current to flow. Risk rises outdoors, beside the sea, under trapped wet dirt and wherever a small aluminium area is coupled to a much larger stainless area.
For coastal aluminium assemblies, choose A4 316 stainless and isolate the contact where practical with a non-conductive washer, sleeve, coating or sealant. Isolation works only if the detail also keeps water out and does not compromise clamp load.
What galvanic corrosion is doing
When aluminium and stainless steel are electrically connected in the presence of an electrolyte such as rainwater or salt water, they form a small galvanic cell. Aluminium is the less noble metal, so it becomes the anode and corrodes preferentially. The stainless fastener is the cathode and is normally protected.
The visible result is usually white or grey aluminium corrosion product, pitting under a washer, paint blistering or an enlarged hole. Red rust on a nominally stainless screw can have another cause, such as carbon-steel contamination. Do not diagnose every stain as galvanic corrosion.
When stainless in aluminium is low risk
- The joint stays dry indoors.
- Rain drains freely and the contact dries quickly.
- The aluminium component is large compared with the exposed stainless fastener.
- The aluminium is anodised or coated and the finish remains intact.
- There is no salt, pool chemical or industrial electrolyte.
- The joint can be inspected and maintained.
A few stainless screws in a broad aluminium sheet is often a favourable area ratio. The aluminium anode is large and each stainless cathode is small, so the galvanic current is spread over a wide aluminium surface. That does not make a wet crevice harmless, but it explains why many ordinary aluminium panels use stainless screws successfully.
When the risk becomes serious
| Condition | Risk | Practical response |
|---|---|---|
| Dry indoor panel | Low | Use clean parts and avoid damaging the aluminium finish. |
| Occasional rain, good drainage | Low to moderate | Seal exposed interfaces and inspect after the first season. |
| Persistent wet crevice | Moderate to high | Redesign for drainage, isolate contact and seal water paths. |
| Coastal, marine or de-icing salt | High | Use A4, isolation and a maintained barrier system. |
| Small aluminium fastener in large stainless plate | Very high for aluminium | Avoid the adverse area ratio or obtain a corrosion design. |
The area ratio matters
Galvanic corrosion rate depends on the cathode-to-anode area. A large cathode feeding current into a small anode concentrates attack on that small aluminium area. A small stainless screw in a large aluminium panel is normally the less severe orientation. A small aluminium rivet in a large stainless panel is much worse.
Crevices complicate the picture. A washer can trap a small volume of salty water around a scratched hole, so local pitting still occurs even with a broadly favourable panel-to-screw ratio. Drainage, coatings and sealing remain important.
A2 or A4 stainless with aluminium?
Choose the stainless grade for the environment:
- A2 304: dry indoor, sheltered outdoor and ordinary inland use where chloride exposure is low.
- A4 316: anything within 5 miles of the coast, marine hardware, poolside equipment, road-salt exposure and wet industrial sites.
A4 improves the fastener's resistance to chloride pitting. It does not stop aluminium being the anodic partner, so isolation and moisture control are still needed in aggressive exposure. Use the A2 vs A4 stainless guide for a fuller grade decision.
Seven ways to reduce galvanic corrosion
1. Keep the joint dry
Provide drainage and avoid horizontal ledges where water and dirt collect. A joint that dries between rain events has less time to sustain galvanic current.

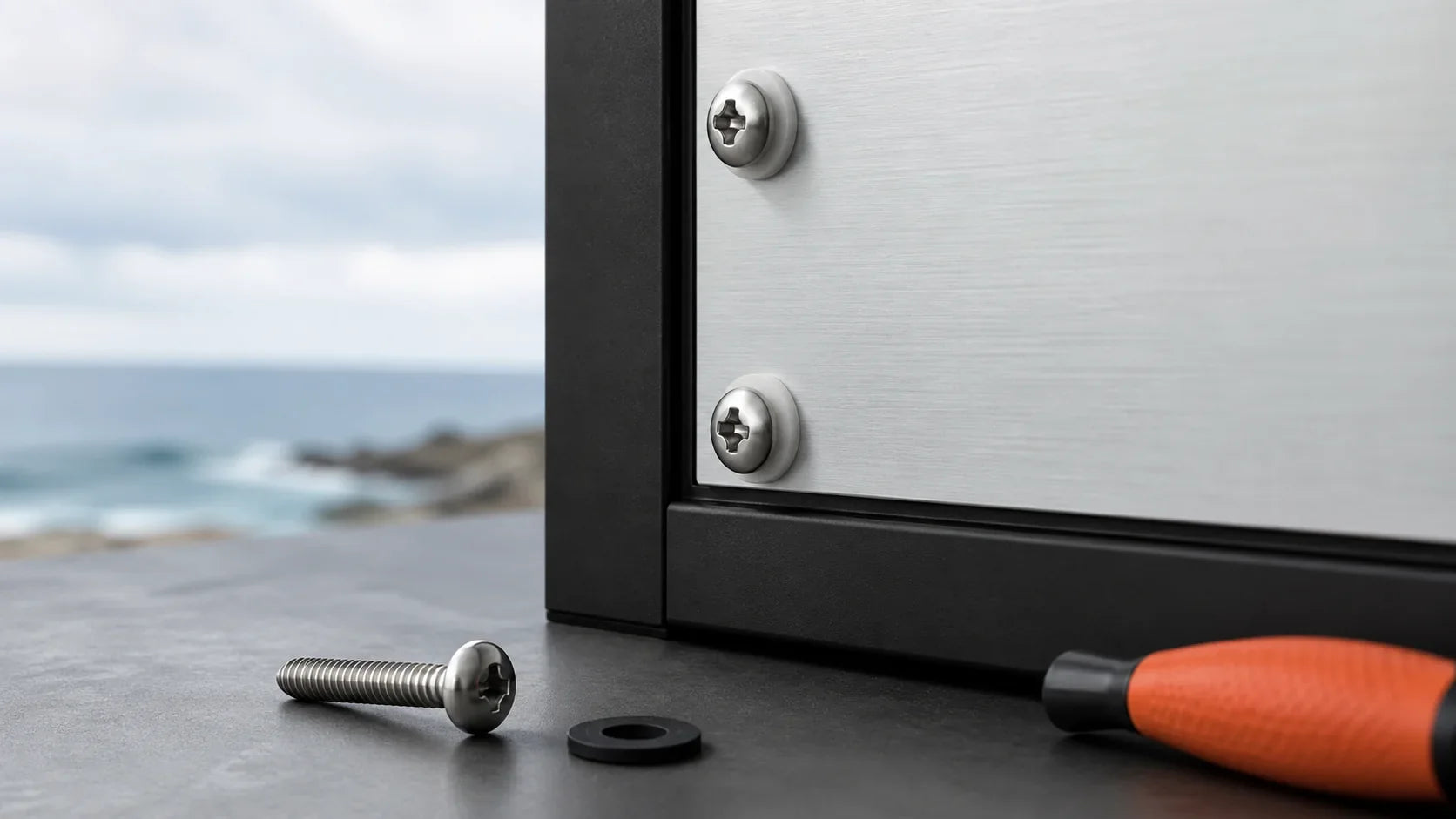

2. Isolate the metal contact
Use a suitable non-conductive washer, shoulder washer or sleeve so the stainless head and shank do not touch bare aluminium. The isolator must tolerate temperature, UV, compression and the required clamp load.
3. Protect the aluminium surface
Anodising, conversion coating or a sound paint system reduces exposed aluminium. Repair scratches around drilled holes with the approved coating system. Do not scrape the finish away with an oversized spinning washer.
4. Seal the electrolyte path
Apply a compatible jointing compound or sealant around the interface where the design calls for it. The material must suit aluminium, stainless steel and the service environment. Sealant should exclude water, not trap it inside an unvented crevice.
5. Use a washer intelligently
A wide washer spreads load on soft aluminium, but bare stainless against bare aluminium increases the contact area. Pair the washer with an isolation layer or protected surface. Browse stainless flat washers by form and diameter.
6. Avoid conductive contamination
Carbon-steel swarf, wire-brush residue and salty dirt create extra corrosion sites. Use clean tools dedicated to stainless work where practical and remove drill swarf before assembly.
7. Inspect the first wet season
Look for white powder, edge staining, blistered coating and loose clamp load. Early correction is far cheaper than rebuilding a pitted panel.
Thread and torque considerations in aluminium
Aluminium threads usually control the allowable torque before a stainless fastener reaches its own capacity. A generic stainless chart can therefore be dangerously high for a tapped aluminium hole. Use the thread engagement, alloy, insert and equipment specification.
If the fastener is self-tapping into aluminium sheet, start with a material-appropriate pilot hole. The self-tapping screw pilot-hole chart gives working values for common 3.5, 4.2 and 4.8 mm sizes. For a machine screw in a tapped hole, consider a suitable insert if the joint will be serviced repeatedly.

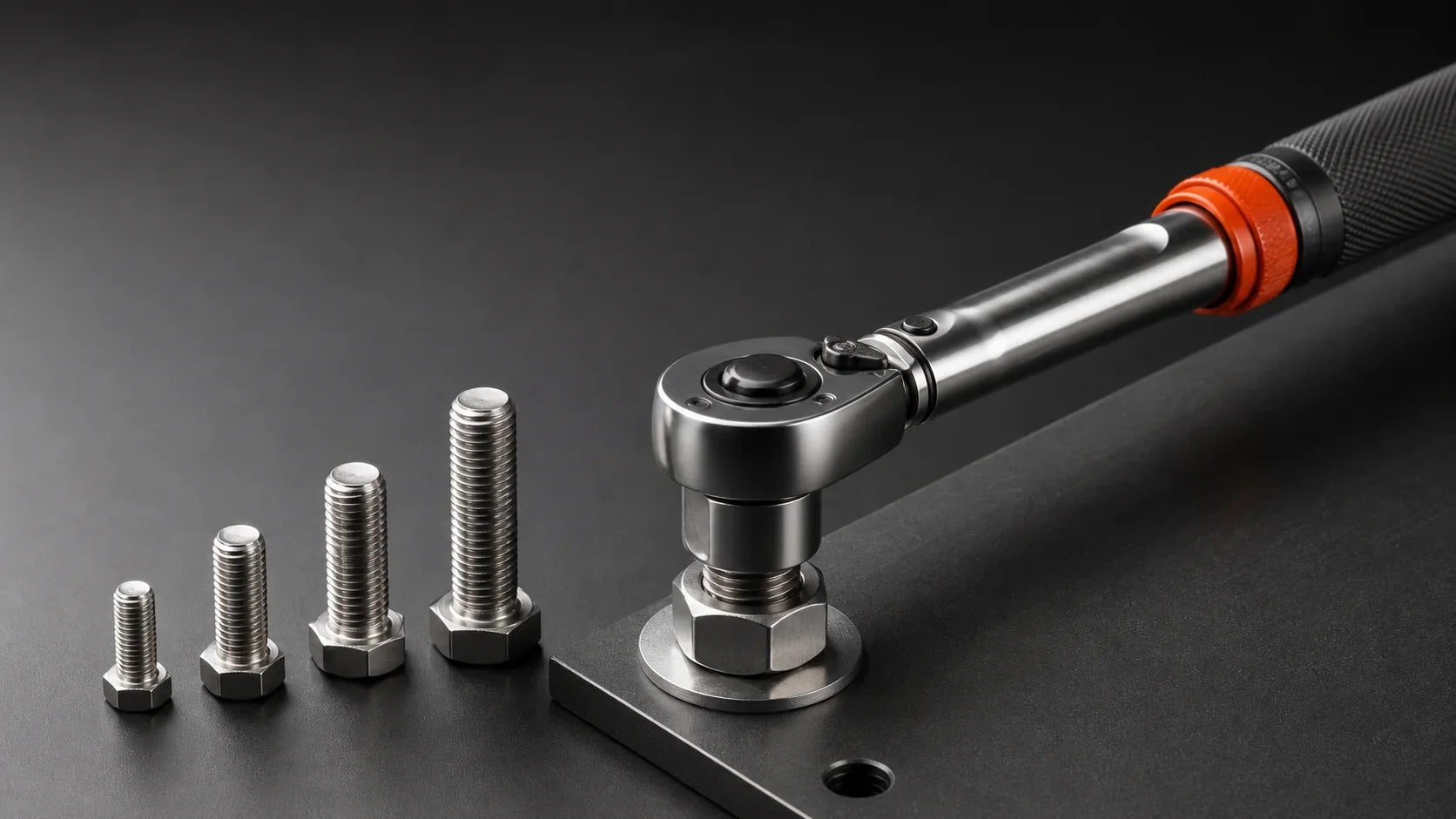

Lubricant or jointing compound on the thread changes friction and preload. It can also affect electrical contact. Use a defined assembly process rather than applying a dry torque by habit. Our stainless bolt torque chart explains the difference between torque and clamp load.
Outdoor aluminium panels: a practical specification
For a non-structural aluminium cover or enclosure in ordinary inland exposure:
- Deburr the drilled hole and remove all swarf.
- Repair any damaged coating or anodised finish using the approved system.
- Use A2 stainless if the site is inland and drains freely. Use A4 in coastal or chloride exposure.
- Fit a suitable isolation washer or sleeve where moisture can persist.
- Seal the water path without blocking intended drainage.
- Tighten only enough to seat the joint without crushing the isolator or stripping aluminium.
- Inspect after exposure and at normal maintenance intervals.
For marine structures, façades, electrical earthing, pressure equipment or load-bearing aluminium, obtain the project corrosion and structural specification. Electrical bonding requirements can conflict with isolation, so that decision belongs with the system designer.
Continue through the stainless fixing series
Fasteners for an aluminium panel trial
- 4.2 x 13 mm A2 pan tapping screw - a compact inland option for suitable thin aluminium sheet.
- 4.8 x 19 mm A4 pan tapping screw - an A4 option where chloride exposure calls for the marine grade.
- M10 A4 Form A flat washer - a matching washer for a designed M10 through-bolted assembly, used with appropriate isolation.
Frequently asked questions
Can I use stainless steel screws in aluminium?
Yes. The combination is common and often low risk in dry or well-drained conditions. Moisture, salt, damaged coatings and an adverse metal-area ratio increase galvanic corrosion.
Will stainless screws make aluminium corrode?
They can accelerate local aluminium corrosion if both metals are electrically connected and bridged by conductive moisture. Breaking contact or excluding moisture interrupts the galvanic cell.
Should I use A2 or A4 screws in aluminium?
Use A2 for dry indoor and ordinary sheltered inland exposure. Use A4 316 within 5 miles of the coast and around salt, pools or persistent chlorides.
Do nylon washers prevent galvanic corrosion?
They help isolate the fastener head, but a complete detail may also need a sleeve around the shank, protected hole edges and a seal against moisture. Clamp load and creep must be checked.
What does galvanic corrosion on aluminium look like?
Look for white or grey powder, pitting, paint blistering and material loss around the stainless contact. Red staining alone may have a different source.
Next step: inspect the joint for bare metal contact, trapped water and salt. If two of those are present, add isolation and a maintained barrier before fitting the hardware. Browse roofing, cladding and sheet-metal fasteners or the marine and coastal range.
